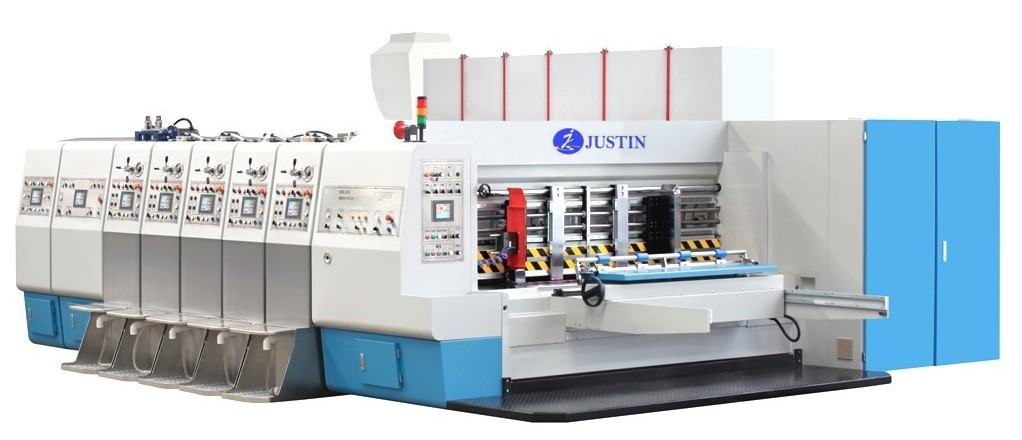

WIKE TP Vacuum Transfer Top Flexo Printer Machine
WIKE TP Vacuum Transfer Top Flexo Printer machine is manufactured according to Euramerican Standard. WIKE TP adopts the best quality electrical and major parts imported from Europe,AmericaandJapan; this achieves high efficiency and stability which create longevity and reliable safety for operators. Advanced design and integrated programs provide nice performance with minimum capital outlay and a fast return on investment.
MACHINE FEATURES
Control on the main console panel or each unit console,control fault display. Remote monitoring maintenance is supplied and trouble-shooting more efficient.
Adopting vacuum transfer top print.
Auto detects reset system. Quick printing plate mounting system for quicker order change.
Static charge removing device and centralized dust collection system so aso to improve dust removal and collection.
Each unit equipped with pull string safety switch.The machine operator,working inside each unit can stop the whole machine from moving at any time.
Vacuum Transfer box adopts ceramic wheels, centralized lubrication device so as to ensure good registration accuracy and long life span.
Driving gears are precisely grinded alloy steel with spraying type circulating lubrication system.
Electric parts, bearing, and pneumatic parts all adopt famous international brand.

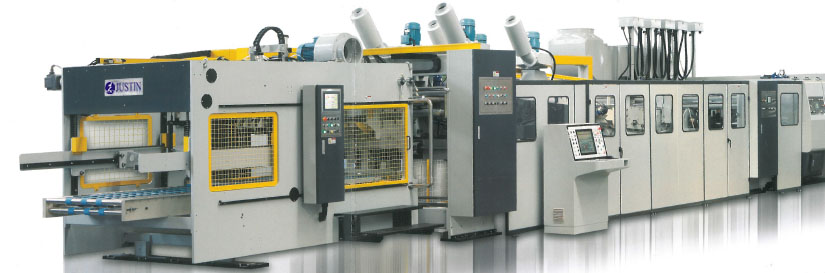

Optional:WIKE TP inline flexo folder gluer .At present,our available size are TP920Casemaker, TP1224Casemaker and TP1228Casemaker.
Main Specification
| Model | WIKE TP 600 | WIKE TP 900 | WIKE TP 1200 | WIKE TP 1600 | ||||
| 1800 | 2000 | 2400 | 2800 | 2800 | 3200 | 3600 | ||
| Max.machine speed(sheet/m) | 350 | 300 | 250 | 220 | 180 | 180 | 160 | |
| Max.feeding size(mm) | 630×1800 | 900×2000 | 1200×2400 | 1200×2800 | 1600× 800 | 1600×3200 | 1600×3600 | |
| Skipfeeding size(mm) | 840×1800 | 1100×2000 | 1500×2400 | 1500×2800 | 2000×2800 | 2000×3200 | 2000× 3600 | |
| Maxprinting area(mm) | 630×1750 | 850×1950 | 1150×2350 | 1150×2750 | 1550×2750 | 1550×3150 | 1550×3550 | |
| Min.feeding size(mm) | 220×400 | 300×650 | 350×690 | 450 × 690 | ||||
| Printing plate thickness(mm) | 6.35 | 7.2 | ||||||
| Min. slotting interval(mm) | Normal | 87.5×87.5 | 150×150 | 160 × 160 | 160 × 160 | |||
| Reverse | 110×65 | 240×60 | 250 × 70 | 250 × 70 | ||||
