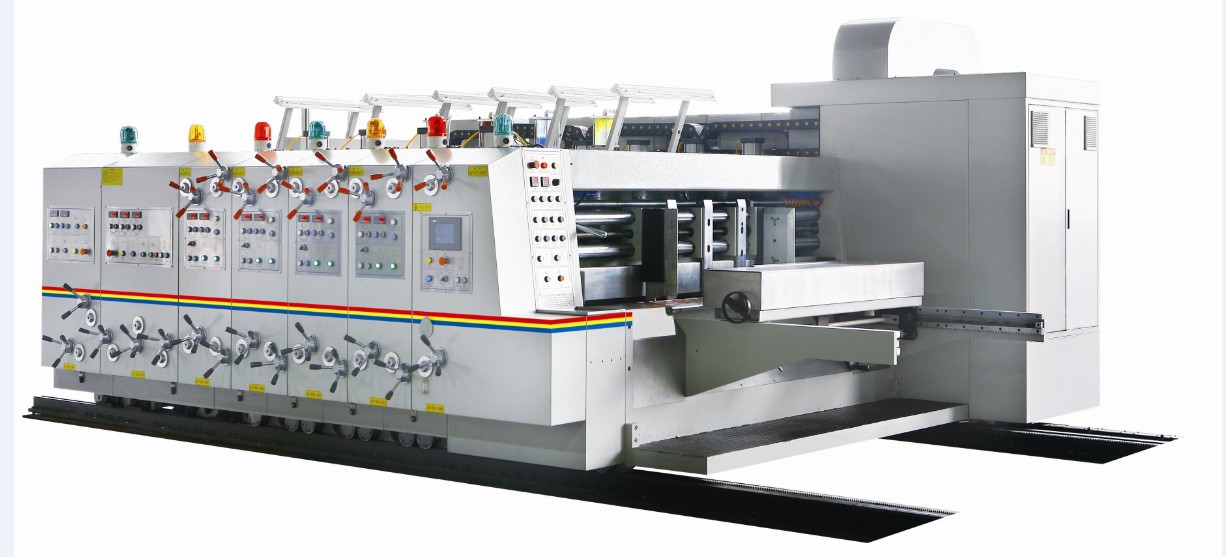

YKC-Machine features

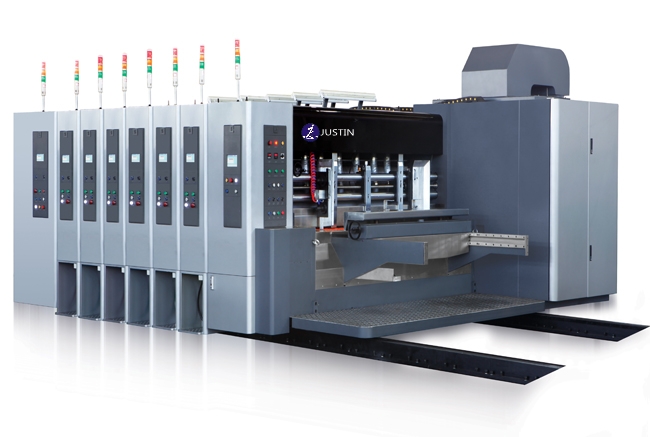

YKC machine is a classic flexo printer slotter die-cutter, which reflects state-of-art design and is very practical. It is designed for high performance, reliability, operator’s safety and user-friendly controls to produce top quality cartons.Vacuum transfer ST Flexo printer slotter is available.
WHOLE MACHINE INTRODUCTION
The machine is controlled by PLC and the phase is regulated by frequency converter.
Servo drives lead edge feeder to get more precise and more stable feeding.
Servo drives Compensation system to get more quite precise die cutting carton.
Being able to store 9999 orders.
Automatic washing device can save inks effectively (0.3～0.5kg each time at each printer).
Driving gears adopt 20CrMnTi alloy steel. The gears are heated especially and then precisely grinded and reach 6 grade precision and HRC 58-62 degree.
All drives shafts are made of high-quality steel, chrome plated, and surface ground.
Pulling feed roller with self-locking and quick adjusting function has easy operation and can avoid damaging roller.
Adopting free loop bound to reduce abrasion and print accurately.
All units of the machine can be separated automatically or manually and an audible alarm sounds during the opening and closing for safe operation.
Gap adjust adopts self-lock adjusting device,and it is easy for operation.
The lubricating system adopts spraying anti-squirt device and automatic circulating lubrication with anti-leakage oil mechanism.
Main Specifications:
|
Model |
YKC-1000 |
YKC-1200 |
YKC-1400 |
YKC-1600 |
||||||
|
1800 |
2200 |
2500 |
2800 |
2500 |
2800 |
2500 |
2800 |
|||
|
Max. feeding size（mm） |
1760*970 |
2160*970 |
2500*1170 |
2800*1170 |
2500*1370 |
2800*1370 |
2500*1570 |
2800*1570 |
||
|
Min. feeding size（mm） |
650*280 |
650*280 |
650*350 |
650*350 |
650*380 |
650*380 |
700*400 |
700*400 |
||
|
Skipping feeding（mm） |
1760*1170 |
2160*1170 |
2500*1370 |
2800*1370 |
2500*1570 |
2800*1570 |
2500*1770 |
2800*1770 |
||
|
Max.printing area（mm） |
1750*950 |
2150*950 |
2450*1150 |
2750*1150 |
2450*1350 |
2750*1350 |
2450*1550 |
2750*1550 |
||
|
Standard printing plate thickness（mm） |
7.2 |
7.2 |
7.2 |
7.2 |
||||||
|
Min.slotting space（mm） |
Normal | 120*120*120*120 | 140*140*140*140 | 150*150*150*150 | 150*150*150*150 | |||||
|
Reverse |
190*50*190*50 |
250*80*250*80 |
250*80*250*80 |
250*80*250*80 |
||||||
| Effective feeding range（mm） |
2.5-10 |
2.5-10 |
2.5-10 |
2.5-10 |
||||||
|
Max. slotting depth（mm） |
300 |
300 |
350 |
350 |
350 |
350 |
350 |
350 |
||
|
Max. speed（sheet/min） |
200 |
200 |
170 |
170 |
150 |
150 |
130 |
130 |
||
