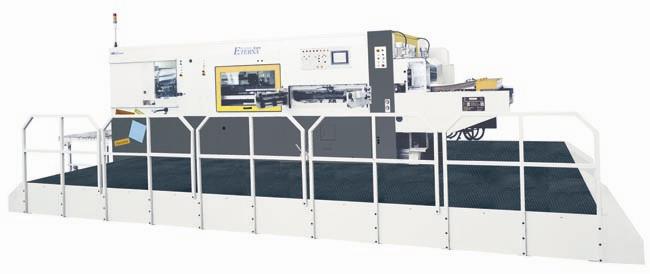

PE Automatic Platen Diecutting and creasing machine
MACHINE FEATURES
Feeder
New Maxcut lead edge feeder, more accurate and positive feeding of the corrugated board
Rear jogger at feeder to prepare for the possible future in line operation with prefeeder (optional)
Pneumatic side push guide plates (left and right sides)
Left and right side guides, individually position adjustable and register side at choice per box layout
High vacuum blower with silencer and valving system
SERVO DRIVE EXTENDED LONG FEEDING TABLE (optional)
DIE CUTTING SECTION
Crank and worm gear, toggle drive system for the lower platen
The mobile platen stroke is increased from 71mm to 95mm for handling corrugated board (especially AB Flute) smoother
Stationary high precision upper platen
Safety door and diechase safety locking system
High torque pneumatic clutch/break for positive clutch on and reliable breaking, and special air inlet system to control the air volume for smooth machine start and stop
Air cushion underneath the cutting plate for easy cutting plate in and out
Gear main drive
Overloading protection torque limit clutch
State-of-the-art 3 cam index gripper chain drive
Center line system compatible to Center Line II, makes the cutting die and stripping die centered quickly
8 high quality precision alloy gripper bars, each with 12 special hardened grippers to ensure firm grab of the sheet at high speed
Corrugated Sheet arrival and departure check photo sensor
Left and right front lay locking blocks, separating and synchronizing adjustment available
Chain guide rail use VL compound to improve abrasive resistance and seismic resistance
Self-diagnostic trouble display
Digital speed display
Automatic recycling lubrication system with oil pressure gauge and oil pressure switch
Automatic main gripper drive chain lubrication
STRIPPING SECTION
Centerline system (compatible to Centerline II) for quick stripping die set up
400mm upper stripping frame raiser enhances greatly the operation space, more operator friendly
Motorized upper frame suspending hoister
Lead edge waste removal system
DELIVERY OF DIE CUTTED BOXES
Escalator delivery fork with non-stop air cylinder for neat and positive delivery and conveyor belt delivery table to protect the corrugated die cutted boxes from scratches
Bundle delivery with pre-set counter requesting only one sheet interval in non-stop operation at 5000S/H production speed
The boxes bundle delivery table can be prepared for future connection with breaker for in line operation (to be required at order)
Full stripping with/without lead edge waste stripping convertible by one button, no tool change, more operator friendly and safe operation
Spring loaded adjustable chain tension back buffering wheel to maintain the chain tension constant and smooth gripper bar movement
Electronic corrugated die cuteed boxes batch counter
This machine is manufactured by Bobst Group.
Specifications
Maximum Sheet Size : 1620 x 1200 mm
Minimum Sheet Size : 650 x 450 mm
Maximum Cutting Size : 1600 x 1180 mm
Maximum Mechanical Speed : 5000 cycles/hour
Maximum Cutting Pressure : 400 tons
Stock Range : E, B,C,A and AB flute corrugated board (1~8.5mm)
Minimum Gripper Margin : 6-12 mm
Minimum Gripper Waste : 12 mm
(Distance from first knife to paper edge)
Cutting Rule Height : 23.8 mm
Total Power Required : 35 KW
Main Motor Power : 22 KW
Electrical Power : 380V, 50HZ, 3-phase
Air Pump Displacement : 0.7m3/min
Mobile Lower Platen Adjusting Range : ±1.5mm
Net Weight of Machine : 32 tons
Gross Weight of Machine : 39.5 tons
Machine Dimensions : 9980(L)x5670(W)x2480(H)mm (incl. Catwalk)

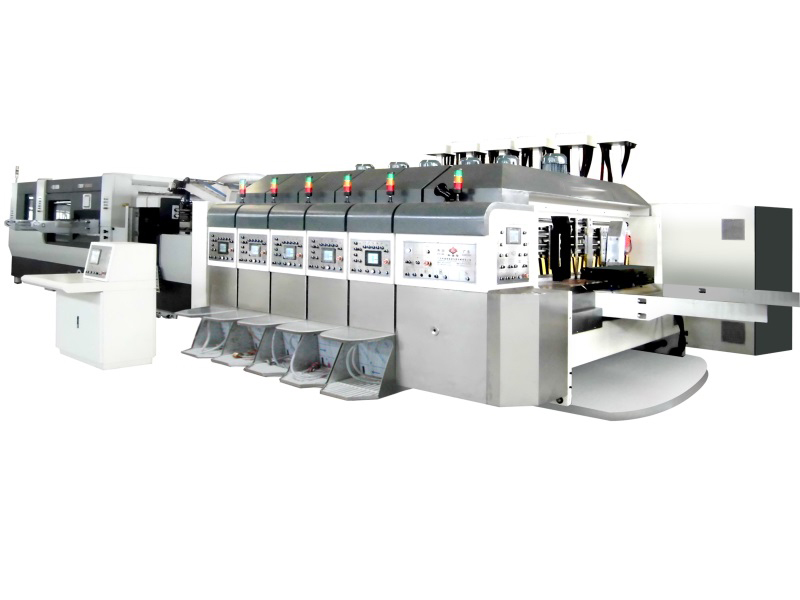

Optional: JB1220 Bottom flexo pinter inline flat bed die cutter
