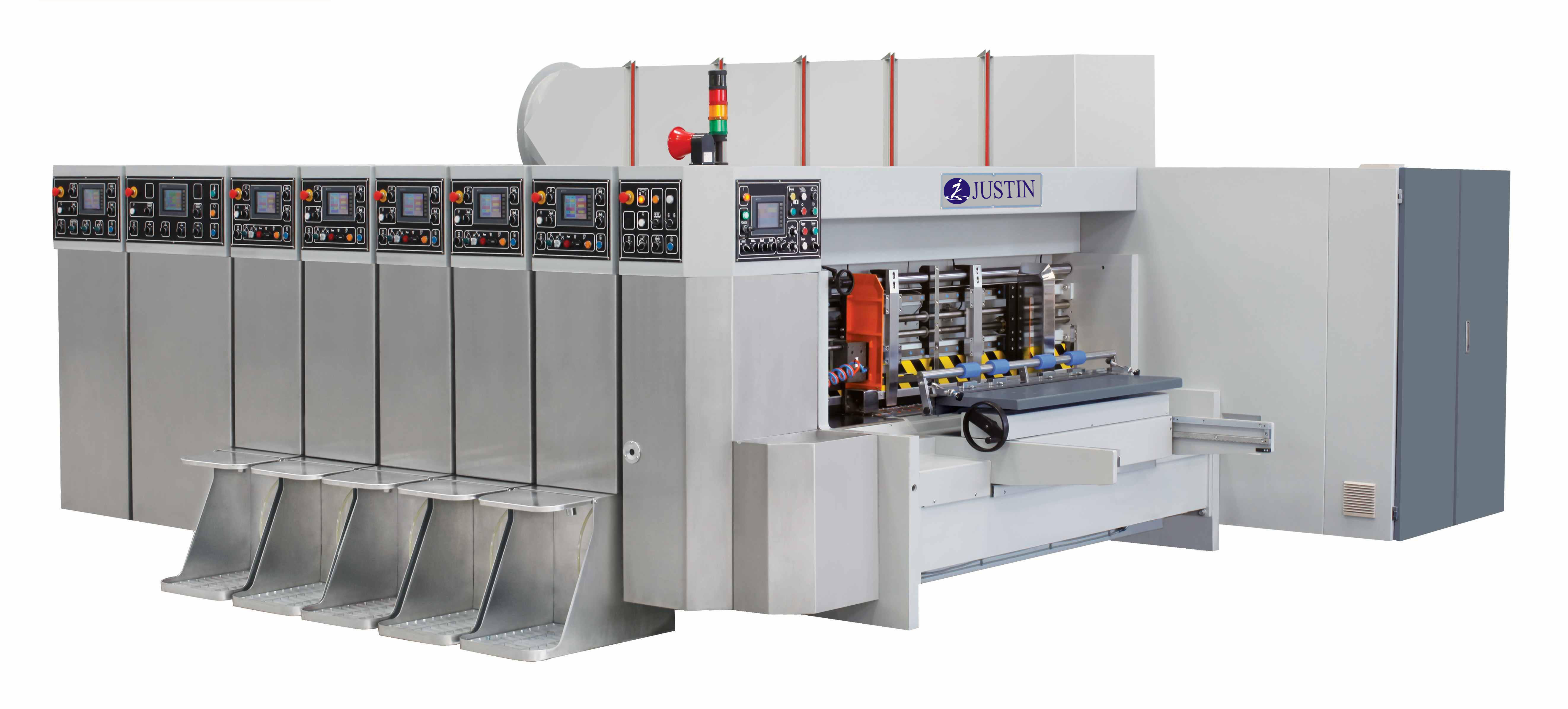

WIKE TP618 Mini flexo printer slotter die-cutter
Machine Features
Control on the main console panel or each unit console,and control fault display. Remote monitoring maintenance is supplied and
trouble-shooting more efficient.
Vacuum transporting top printer.
High speed like a sports car and high precision.
Auto detects reset system.Quick printing plate mounting system for quicker order change.
Static charge removing device and centralized dust collection system so as to improve dust removal and collection.
Each unit equipped with pull string safety switch.The machine operator,working inside each unit can stop the whole machine from moving at any time.
Vacuum Transfer box adopts ceramic rollers, centralized lubrication device so as to ensure accuracy and life span.
Front and back slotting knife at different shaft with wider control range
Transmission gears are precision grinded alloy steel with spraying type circulating lubrication system.
Electric element, bearing, and pneumatic element all adopt famous international brand.
Technical Specification
| Model | WIKE TP618 |
| Max speed(sheet/min) | 350 |
| Max feeding size(mm) | 630*1800 mm |
| Skip feeding size(mm) | 840*1800 mm |
| Max printing area(mm) | 630*1750 mm |
| Min feeding size(mm) | 220*400 mm |
| printing plate thickness(mm) | 6.35 mm |
| Min. slotting interval(mm) Normal | 87.5*87.5 mm |
| Min. slotting interval(mm) Reverse | 110*65 mm |
